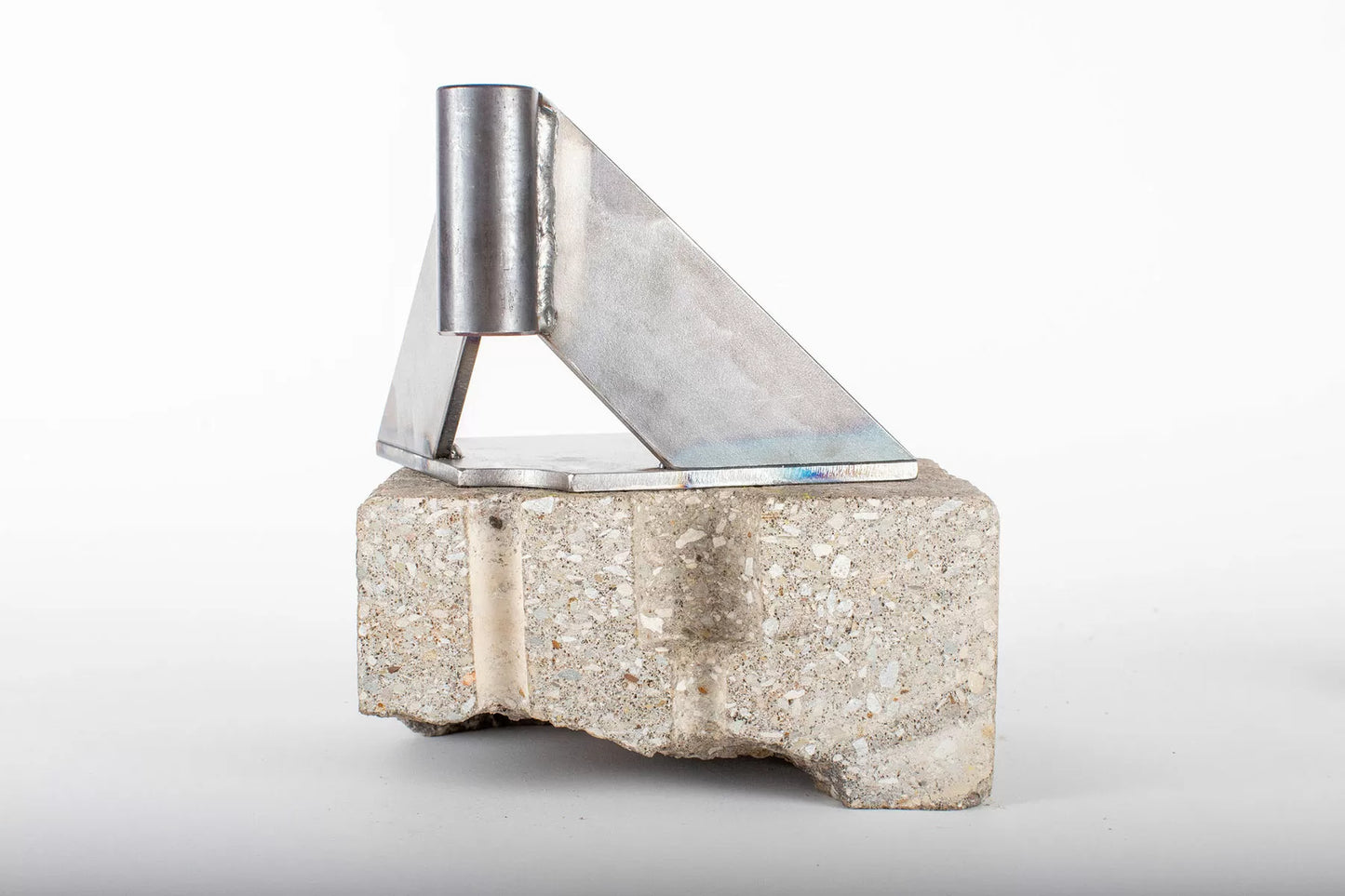

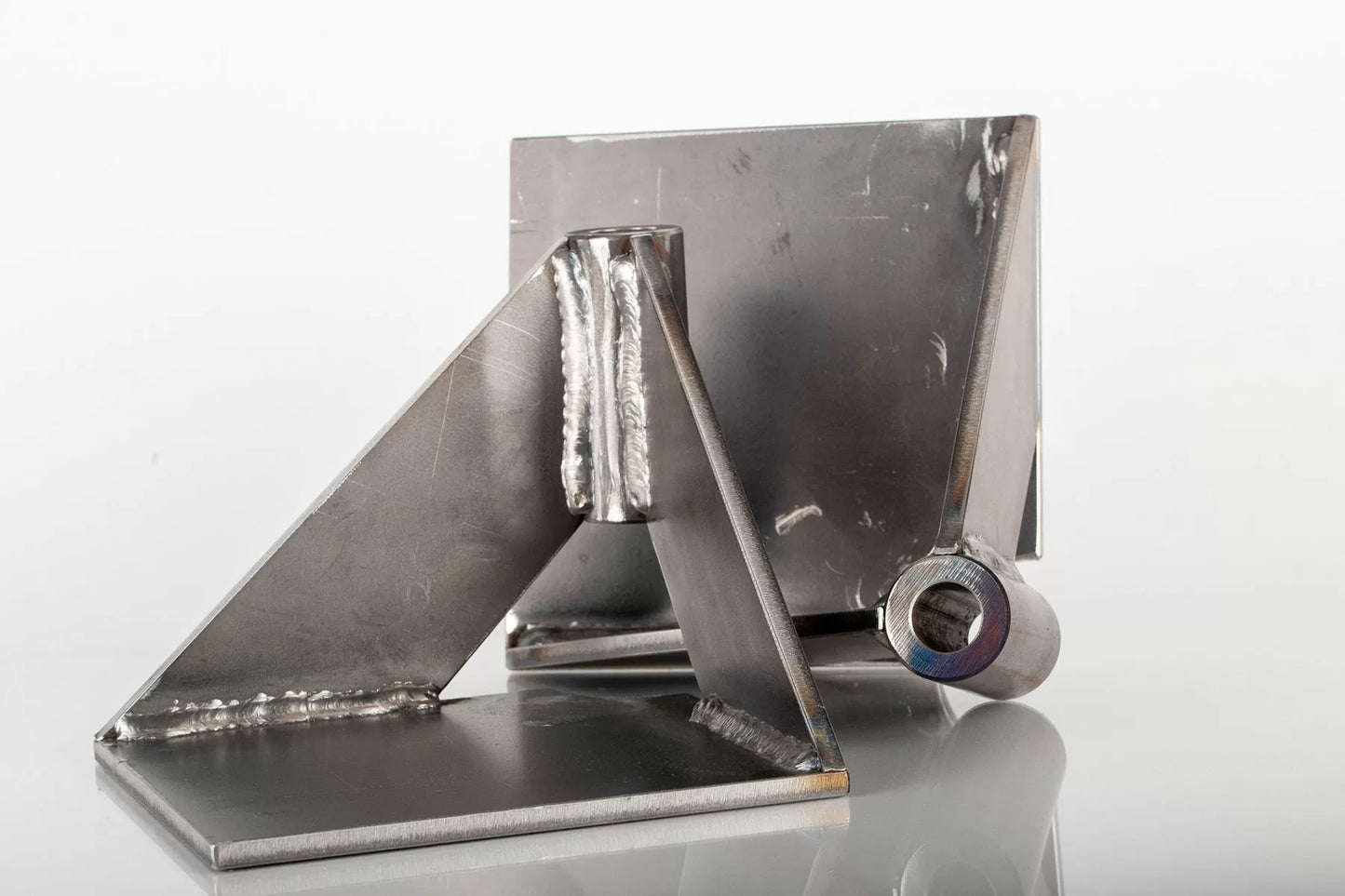

Mini-Vapor Pin® Drilling Guide

The Stick-Up Vapor Pin® Drilling Guide is an essential tool for ensuring the accurate drilling of a 5/8-inch (16 mm) diameter hole when installing the Mini-Vapor Pin® Sampling Device. This guide helps maintain proper hole alignment and depth, ensuring your installation is secure and leak-free.

Key Features:

• Accurate Drilling: Ensures the correct size and alignment for the 5/8-inch hole required for proper Mini-Vapor Pin® installation.
• Ensures Perpendicular Alignment: Guarantees the drilled hole is perpendicular to the slab, which is crucial for the secure fit of the Secure Cover.
• Prevents Mistakes: Helps prevent common drilling errors, ensuring a proper seal for the Mini-Vapor Pin® device.
• Recommended for Mini-Vapor Pin® Installations: Highly recommended for use when installing the Mini-Vapor Pin® Sampling Device to achieve the best results.

Installation Process:

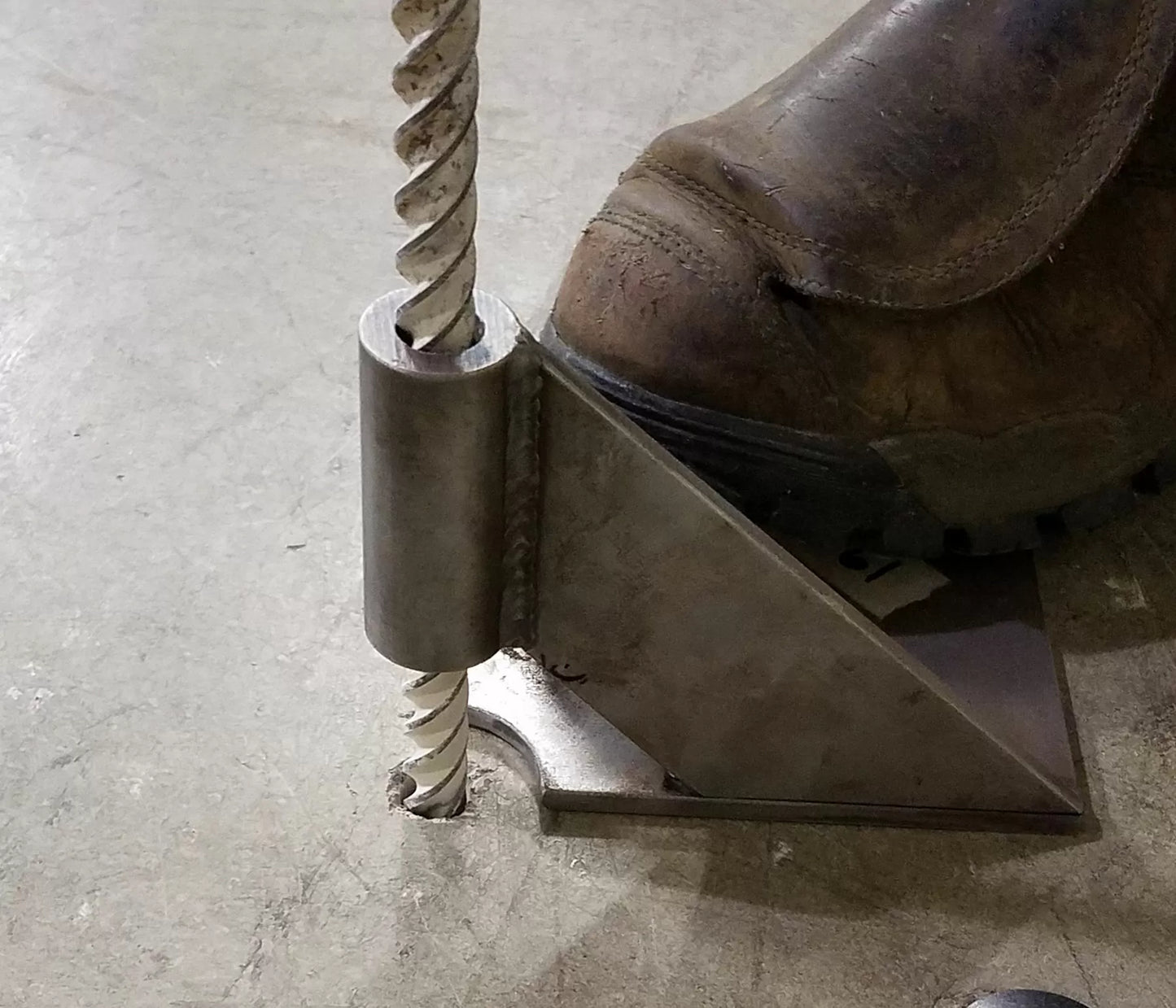

• Drill a 5/8-inch (16mm) diameter hole through the slab and approximately 1 inch (25mm) into the underlying soil to form a void.
• Ensure the hole is perpendicular to the slab to ensure the Secure Cover seats properly.

Specifications:

• Weight: 4.8 lbs
• Dimensions: 5 × 6 × 6 inches

Ideal for Mini-Vapor Pin® Installations
For precise and accurate drilling when installing your Mini-Vapor Pin® Sampling Device, the Stick-Up Vapor Pin® Drilling Guide is the tool you need.
