The Vapor Pin® Drilling Guide is an essential tool for ensuring accurate and precise installation of the Vapor Pin® Sampling Device. This guide helps establish the proper depth for a 1 1/2″ diameter hole and ensures the correct centering of the 5/8″ hole, allowing for proper installation of the secure cover.
Standard Operating Procedure - Drilling Guide & Secure Cover
Installation Process:
- While wearing appropriate PPE, drill a 1 1/2-inch diameter hole into the concrete slab to a depth of approximately 1 3/4 inches. Mark the desired depth on the drill bit with tape for better control.

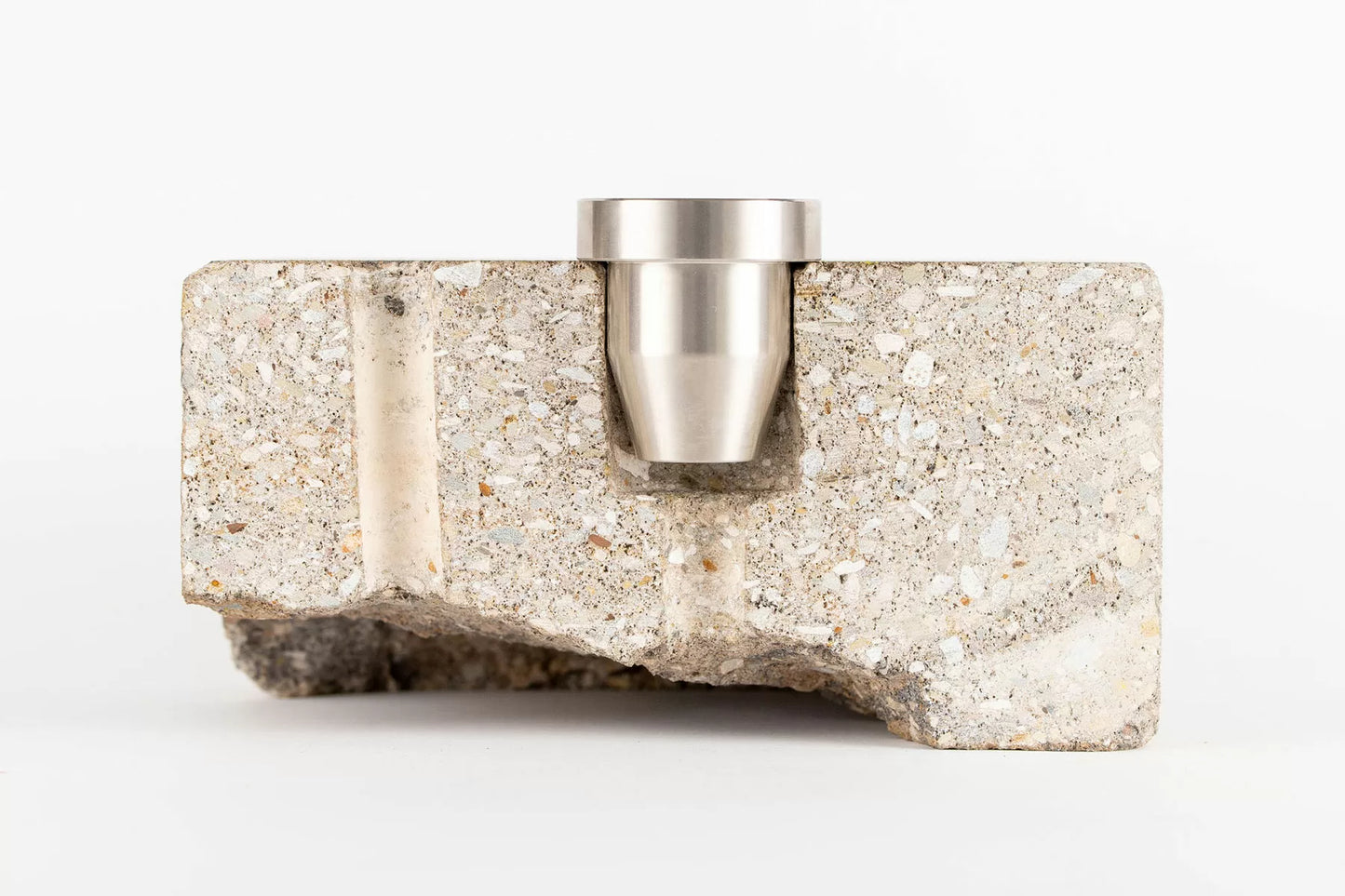

- Place the Drilling Guide with the conical end down in the hole. The hole is sufficiently deep if the flange of the Drilling Guide lies flush with the slab surface.
- If necessary, deepen the hole (but avoid going more than 2 inches into the slab) to ensure proper engagement of the secure cover's threads with the threads on the Vapor Pin® sampling device.
Key Features:
-
Precise Depth Control: Helps establish the correct depth for the 1 1/2″ hole, ensuring the Vapor Pin® Sampling Device is installed at the right level beneath the slab.
-
Easy to Use: Place the Drilling Guide in the hole with the conical end down to ensure the correct hole depth and positioning.
-
Durable Design: Made to withstand repeated use, ensuring consistent results over time.
-
Compatible with Vapor Pin® Installation: Ensures proper alignment for the secure cover and optimal functionality of the Vapor Pin® Sampling Device.
Specifications:
-
Weight: 0.885 lbs
-
Dimensions: 2.1 × 2.1 × 2.2 inches
Ensure Accurate and Easy InstallationFor proper depth and centering when installing your Vapor Pin® Sampling Device, the
Vapor Pin® Drilling Guide is a must-have tool.
